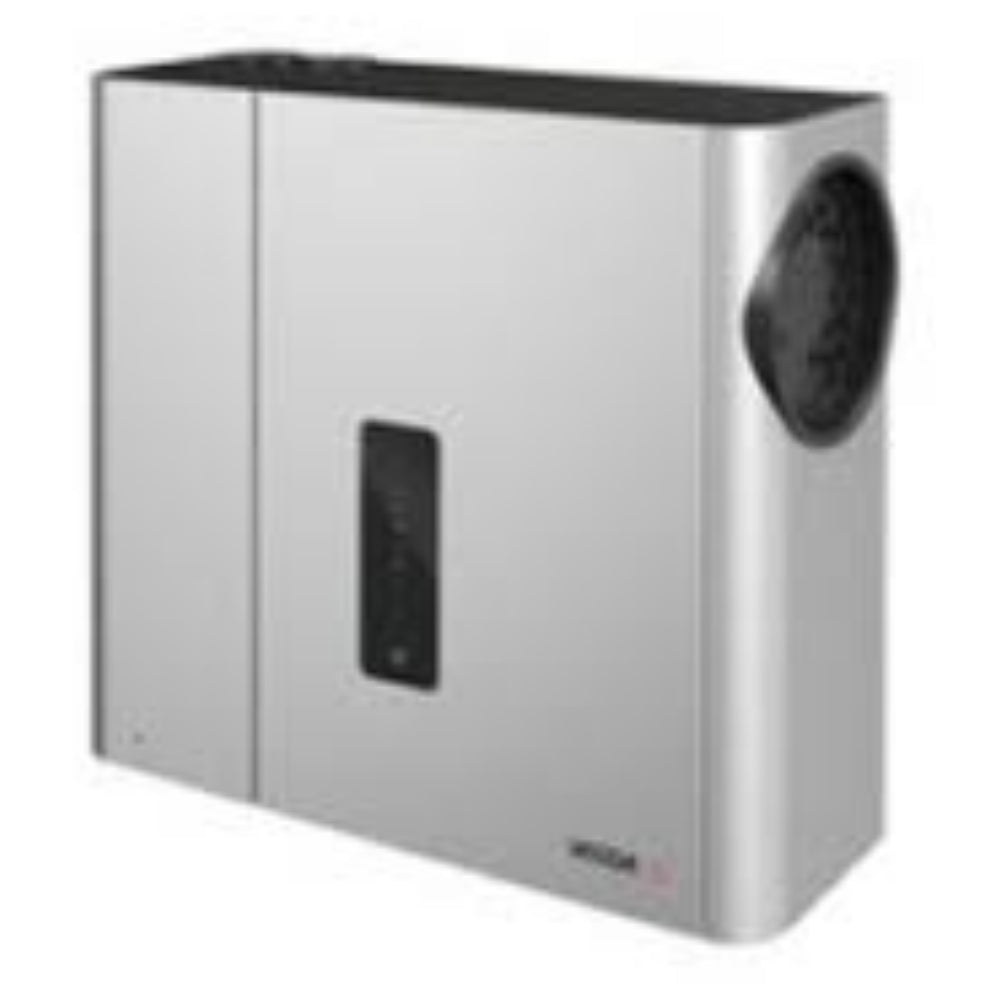

VESDA VPS-VEA-230UL

Product Overview

The Xtralis VPS-VEA-230UL is a dedicated power supply unit designed to support the VESDA-E VEA series of aspirating smoke detectors and Relay StaX modules. This unit converts 230VAC mains input into a regulated 24VDC output, ensuring reliable system operation. It features a robust enclosure capable of housing up to two 36AH batteries, providing essential backup power and charging capabilities to maintain system integrity during main power failures. It is UL and ULC listed for fire protection signaling applications.

Key Features

- Designed specifically for VESDA-E VEA detectors and StaX modules.
- Input: 230 VAC.
- Output: 27 VDC (2.8A Continuous, 5A Alarm).
- Integrated charger for sealed lead-acid or gel-type batteries.
- Cabinet capacity for up to two 36AH batteries.
- Comprehensive supervision for AC failure, brown-outs, and battery status.
- Automatic switch-over to standby battery upon AC failure.
- Filtered and electronically regulated output.
- UL and ULC listed for fire safety compliance.
