Product Details

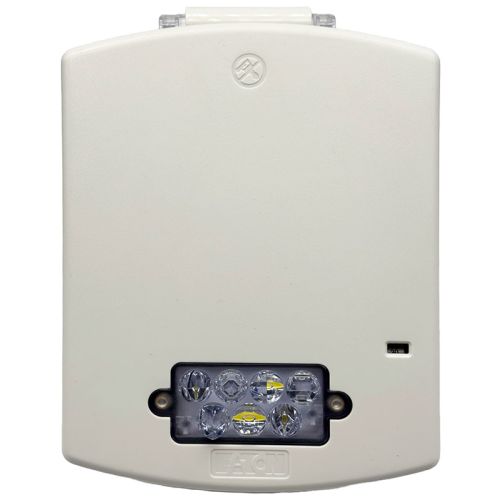

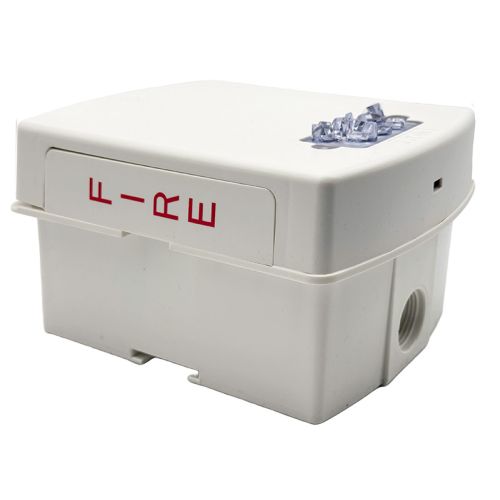

The Wheelock EL4XST-FW is an Eluxa outdoor 4X LED strobe for wall or ceiling notification, supplied with a matching white NEMA 4X surface backbox. It provides clear lens FIRE signaling on 24 VDC or VFWR NAC circuits with six field selectable candela settings from 15 to 185 cd. High efficiency LED technology minimizes current draw and the assembled unit is listed for indoor or outdoor use over a wide temperature range.
Key Specifications:
Type: Eluxa outdoor LED strobe, NEMA 4X assembly, white housing with FIRE lettering, clear lens
Core Function(s): Visual fire notification with multi candela LED strobe output
Loop/Protocol: Conventional 24 VDC or 24 VFWR notification appliance circuits, compatible with Wheelock synchronization methods
Power: 16 to 33 VDC/FWR operating range with six selectable candela settings of 15, 30, 75, 110, 150, and 185 cd and low current LED design

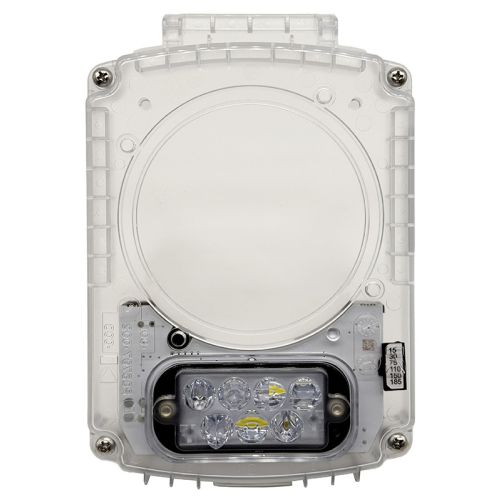

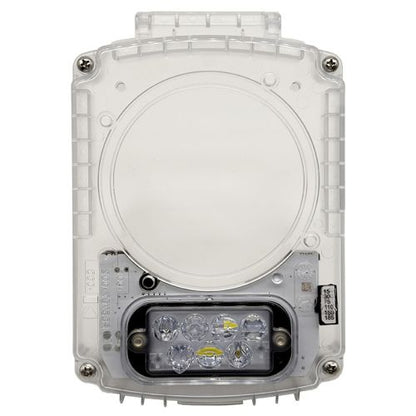

Indicators/UI: Front candela indicator with tamper resistant slide switch, 1 Hz strobe flash rate
Environmental: Indoor or outdoor use, NEMA Type 4X and IP66 when installed with the included 4X backbox
Compatible Backboxes & Accessories:
EL4XBB-W - White NEMA 4X surface backbox for Eluxa 4X white strobe models (factory included with EL4XST-FW, also available as a replacement)
System Compatibility: Compatible with fire alarm control panels and accessories approved for Wheelock Eluxa, Exceder LED3, and RSS strobe based products using Wheelock synchronization.
