Product Details

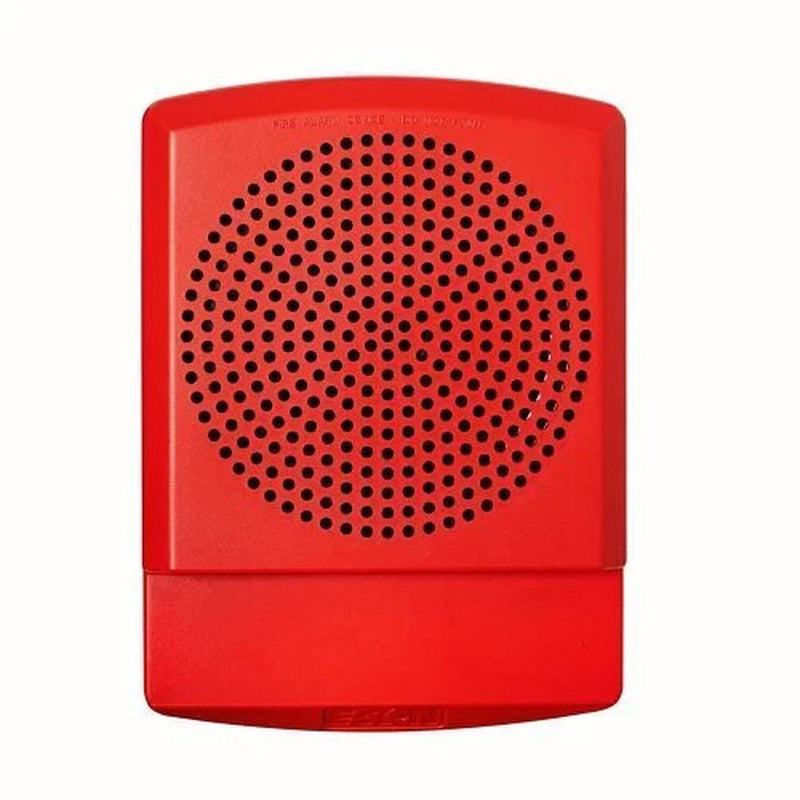

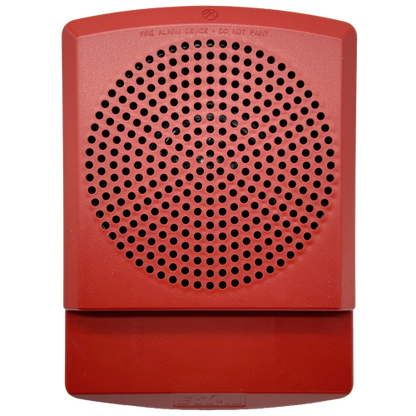

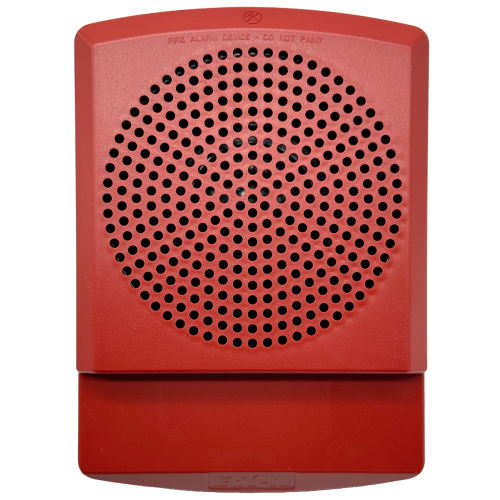

The Wheelock ELMTR is an Eluxa multitone horn for indoor wall notification, providing eight field-selectable alert tones with standard or high dBA output on 12V or 24V NAC circuits. It supports common evacuation patterns including Code 3 horn and Code 3 tone without requiring additional equipment, and includes a mounting plate for pre-wire and final installation.
Key Specifications:
Type: Indoor electronic multitone horn wall mount
Core Function(s): Audible notification with eight selectable tones (Horn, Bell, March Time Horn, Code 3 Horn, Code 3 Tone, Slow Whoop, Siren, Hi/Lo) and standard or high output
Loop/Protocol: Conventional 12 VDC or 24 VDC, filtered or full-wave-rectified NAC wiring
Power: 12 VDC range 8.0 to 17.5 V and 24 VDC range 16.0 to 33.0 V; UL max RMS current varies by tone and output level (up to 0.200 A at 12V HI or 0.135 A at 24V HI)

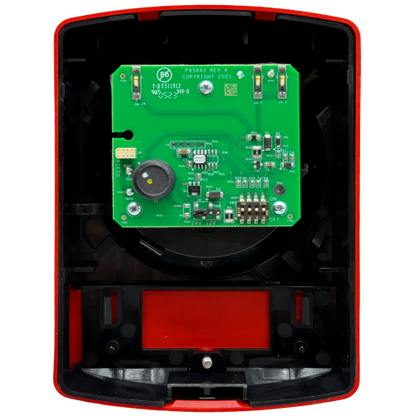

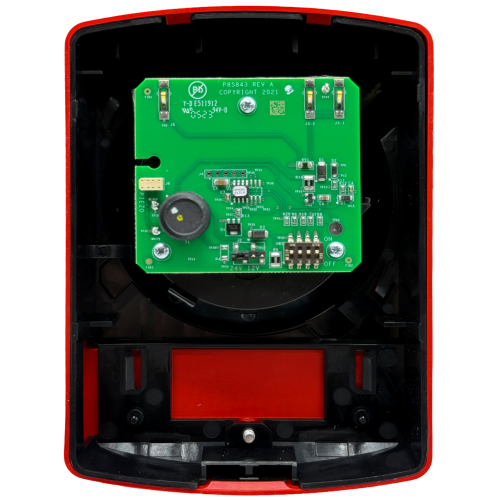

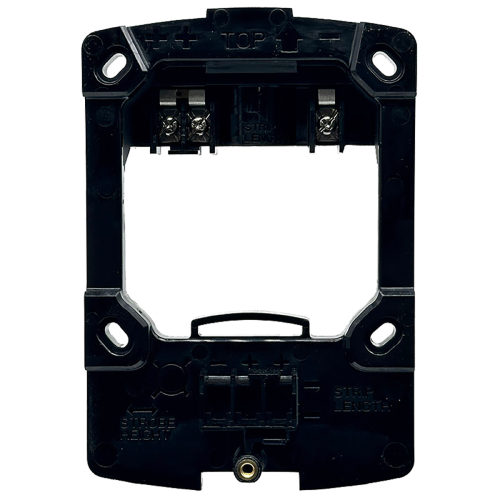

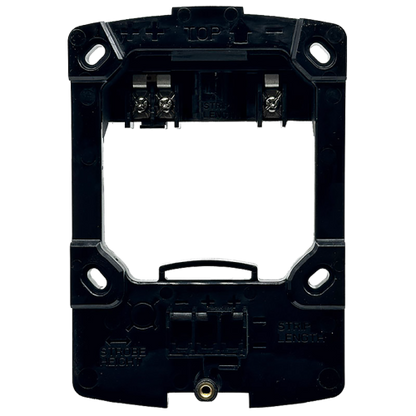

Indicators/UI: Multitone DIP switch selection, standard/high output selection, built-in level adjustment, mounting plate with capture hinge, IN/OUT screw terminals for 12 to 18 AWG
Compatible Backboxes & Accessories:
ELSPKBB-R – Red wall backbox for Eluxa wall multitone models
System Compatibility: UL/ULC listed as compatible with FACPs and accessories determined compatible with Exceder LED3 and Wheelock RSS strobe-based products.
