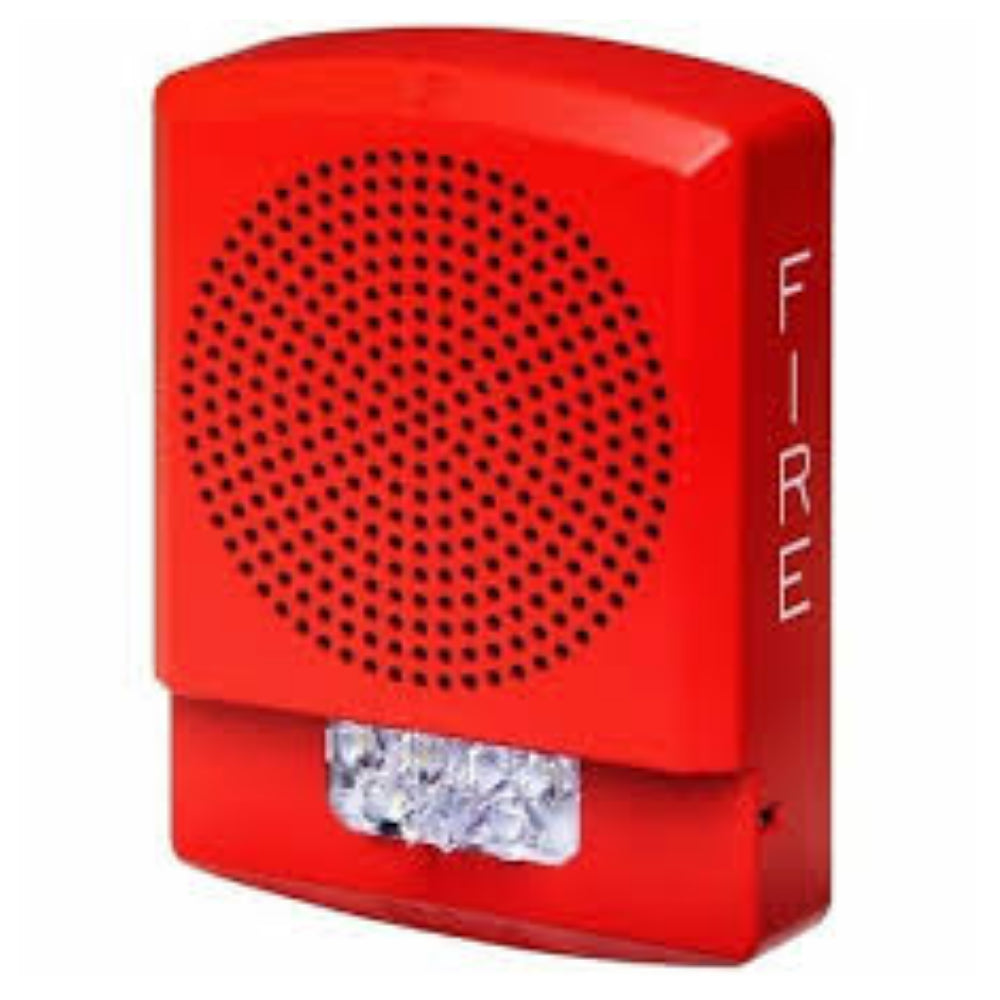

WHEELOCK ELMTSR

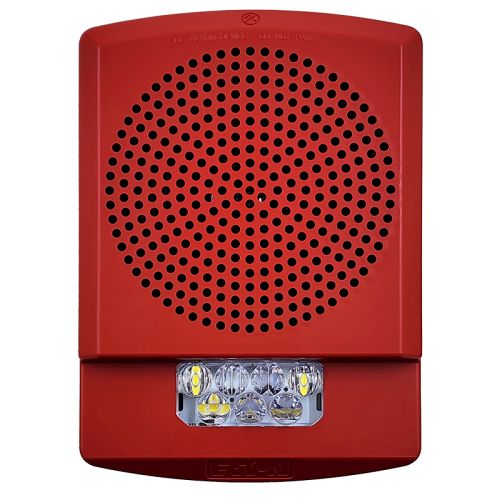

Product Overview The Wheelock Eluxa Multitone Horns and Horn Strobes provide eight selectable alerting sounds in a single device, including Horn, Bell, March Time Horn, Code-3 Tone, Code-3 Horn, Slow Whoop, Siren, and Hi/Lo Tone. The Code-3 patterns are designed to comply with NFPA/ANSI Temporal Pattern requirements without additional equipment. These devices include energy-efficient LED strobes with multiple candela settings for wall or ceiling mount in indoor environments. Eluxa devices support both 12V and 24V operation (depending on model) and can be used with filtered or unfiltered input voltages.

Key Features

- Eight alerting sounds in one device
- NFPA 72 compliant for fire and CO low-frequency sound requirements
- Wall-mounted, indoor application
- Clear lens with red housing and FIRE lettering
- Six candela settings on strobe, energy-efficient LED technology

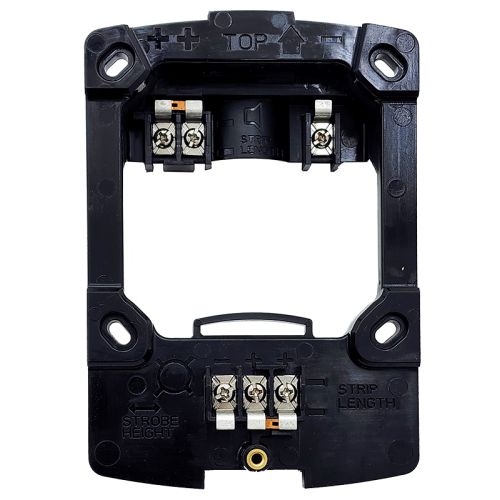

- Pre-wire/pre-test capable mounting plate with hinged feature
- Two sound output levels: Standard dBA and High dBA
- Compatible with a wide range of Fire Alarm Control Panels (FACP) and Wheelock RSS/Exceder LED3 devices
