Product Details

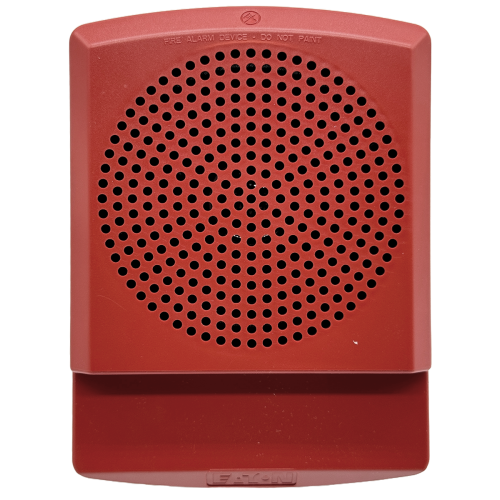

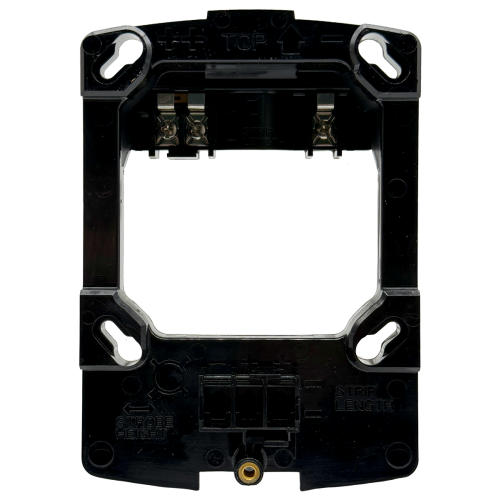

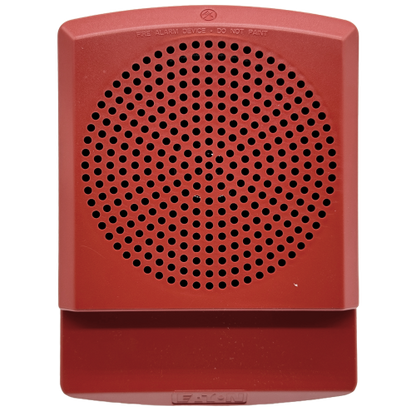

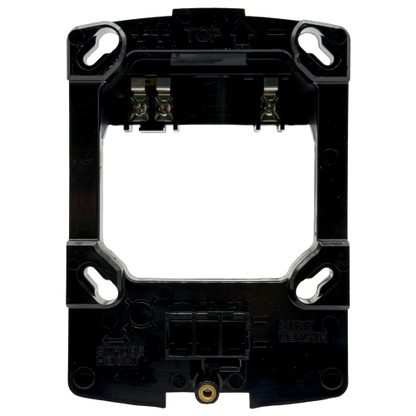

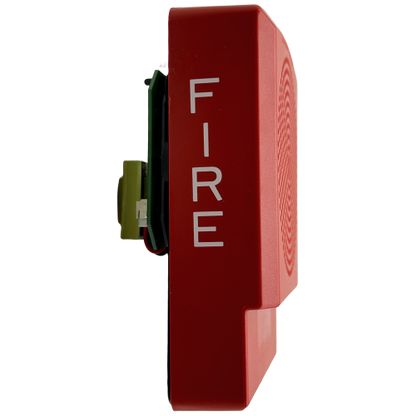

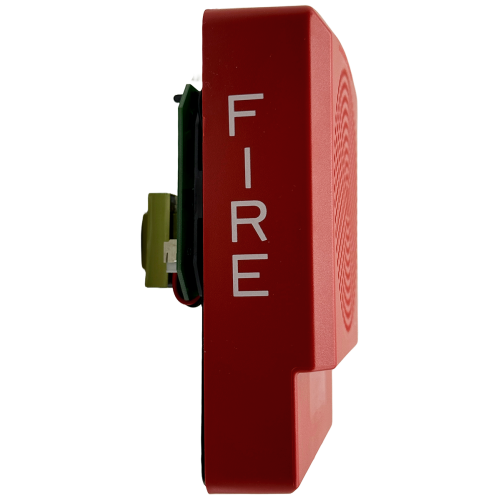

The Wheelock ELSPKR is an Eluxa high fidelity wall speaker for indoor emergency communications and fire alarm voice applications, supporting 25 or 70 VRMS speaker circuits with field selectable power taps. It uses a wide 300 to 8000 Hz frequency response for clear voice messages and tone signaling, and includes a mounting plate with a capture hinge for pre-wire and final installation.
Key Specifications:
Type: High fidelity indoor wall speaker
Core Function(s): Voice and tone notification on supervised speaker circuits
Loop/Protocol: 25 or 70 VRMS audio circuit with field selectable taps
Power: Selectable taps 1/8 1/4 1/2 1 or 2 watts (5 watts at 70V); sound output up to 87 dBA at 10 ft (reverberant)

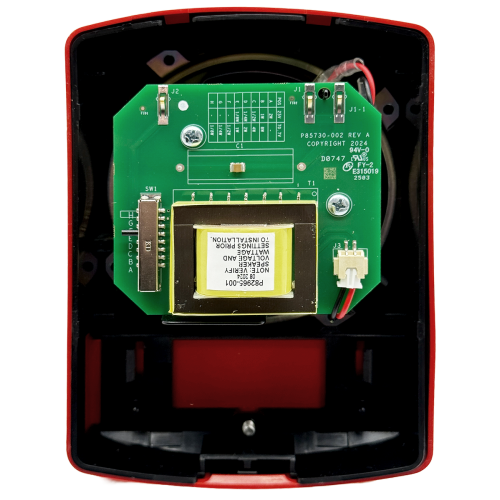

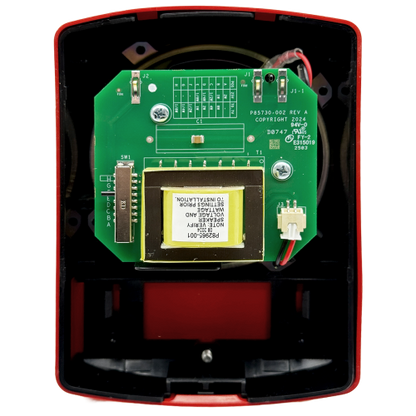

Indicators/UI: Finger slide tap selector, built-in level adjustment, snap-on grille cover, IN/OUT screw terminals for #12 to #18 AWG
Compatible Backboxes & Accessories:
ELSPKBB-R – Wall backbox for Eluxa wall speakers and speaker strobes
System Compatibility: For use with fire alarm voice evacuation and emergency communications systems that provide supervised 25/70 VRMS speaker circuits.
