Product Details

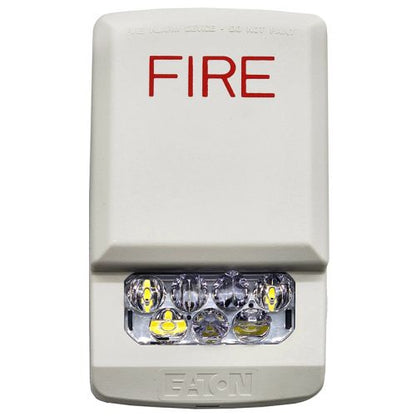

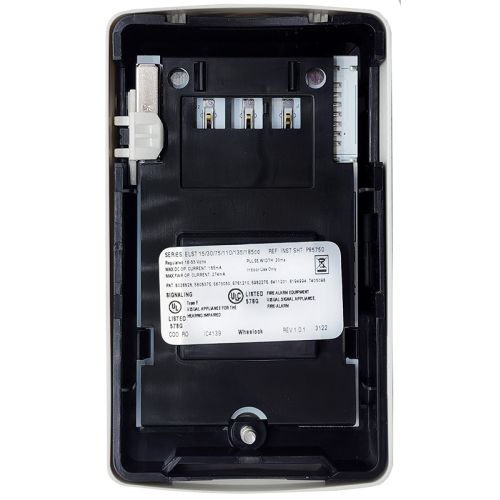

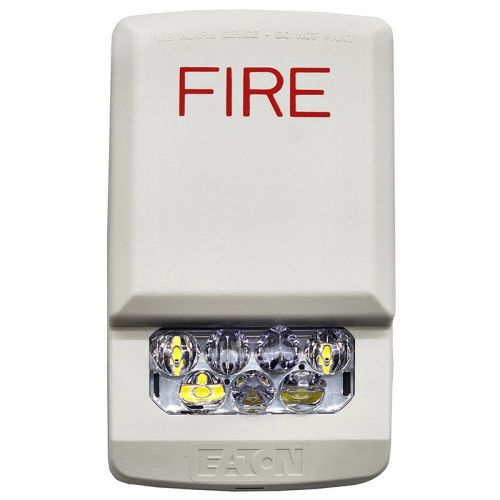

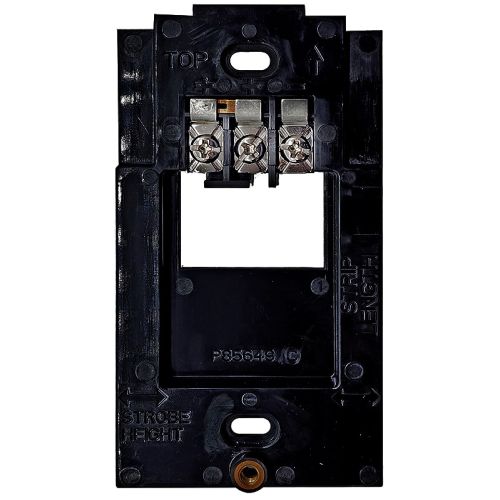

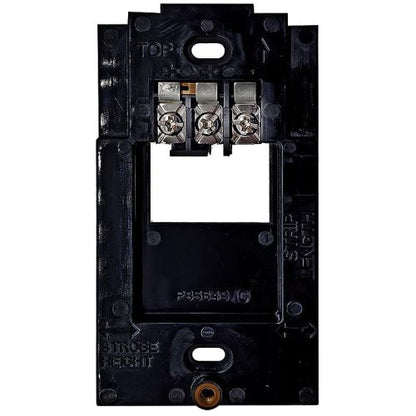

The Wheelock ELSTW is an Eluxa LED wall strobe for indoor fire notification, providing clear lens FIRE signaling on 24 VDC/VFWR NAC circuits. It offers six field selectable candela settings from 15 to 185 cd using high efficiency LED technology to reduce current draw. A wall mounting plate with capture hinge is included for pre wire/pre test and single screw final installation.
Key Specifications:
Type: Eluxa LED wall strobe, white housing with FIRE lettering
Core Function(s): Visual fire notification with multi candela LED strobe output
Loop/Protocol: Conventional 24 VDC or 24 VFWR notification appliance circuits, compatible with Wheelock synchronization methods
Power: Regulated 24 VDC/VFWR, 16.0 to 33.0 V, with six selectable wall candela settings of 15, 30, 75, 110, 135, and 185 cd
Indicators/UI: Front candela indicator with tamper resistant slide switch; 1 Hz flash rate
Environmental: Indoor use, operating range 32 °F to 122 °F (0 °C to 50 °C)
Compatible Backboxes & Accessories:
ELSBB-W – White LED wall backbox for Eluxa wall strobes
ESB-KIT-W – White trim plate kit for wall installations
System Compatibility: Compatible with fire alarm control panels and accessories approved for Wheelock Eluxa, Exceder LED3, and RSS strobe based products using Wheelock synchronization.
