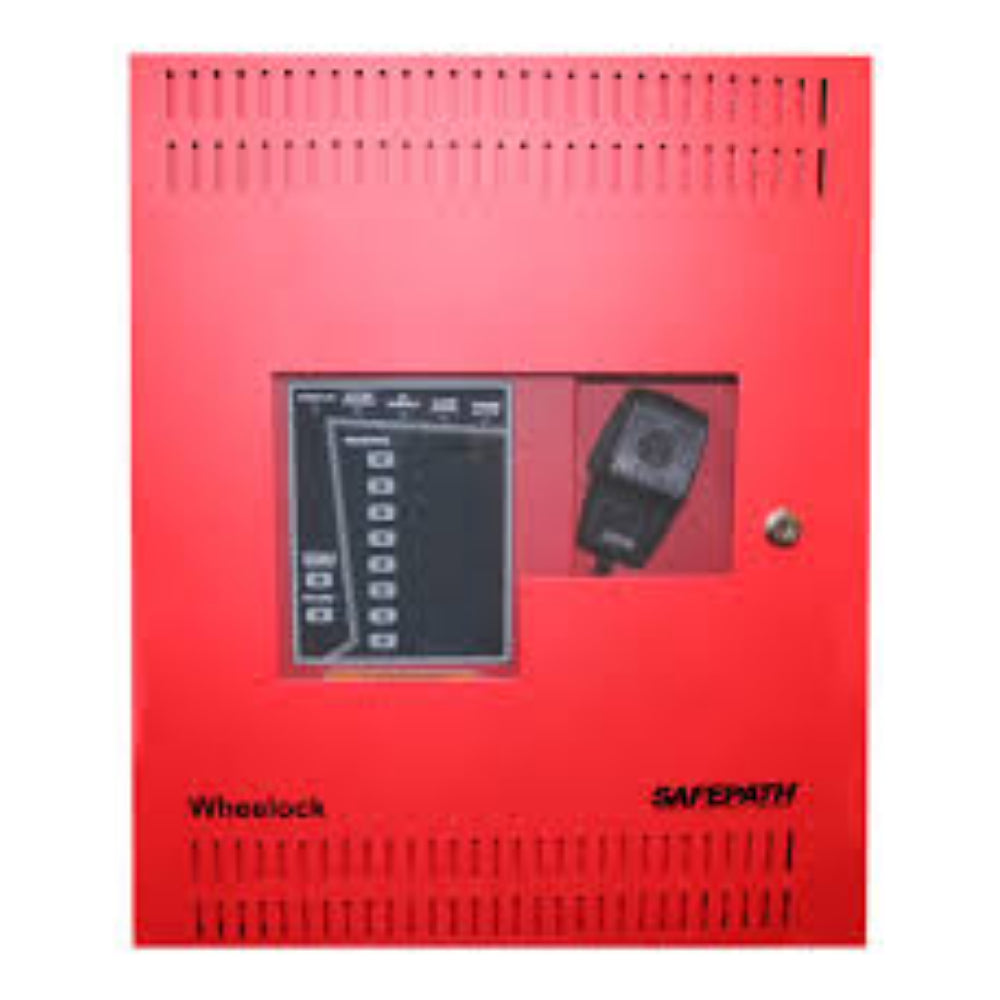

WHEELOCK SP40S-D

Product Overview Designed specifically for Department of Defense (DoD) facilities, the SAFEPATH SP40S-D is a Multi-Function Supervised Personnel Alerting, Paging, Background Music (BGM) delivery, and Emergency Voice Evacuation System with 24 VDC battery backup.

The SP40S-D integrates seamlessly with fire alarm systems and provides full control of building audible and visual notification appliances. This single-channel system delivers 40 watts of supervised high-fidelity audio power and 2 amps of supervised, synchronized 24 VDC strobe power.

It comes equipped with an onboard digital voice messaging system with eight standard messages, a hand-held microphone, power supply/battery charger, and a wide range of advanced supervision and control features.

The system is expandable up to 5280 watts using the SPB-80/4 (80 W + 4 A strobe power), SPB-160 (160 W), or SPB-320 (320 W) supervised audio power boosters. All models are available in 115 VAC or 220 VAC.

To satisfy UFC requirements for automatic audible shutdown after 10 minutes, the SP40S-D includes a 10-minute time-out feature, which automatically deactivates Fire and Emergency digital voice (DV) message inputs 1–6. Inputs 7 and 8 do not time out.

Key Features

- Eight digital voice messages
- SAFEPATH in-building mass notification system
- Integration with paging, telephone, and music systems
