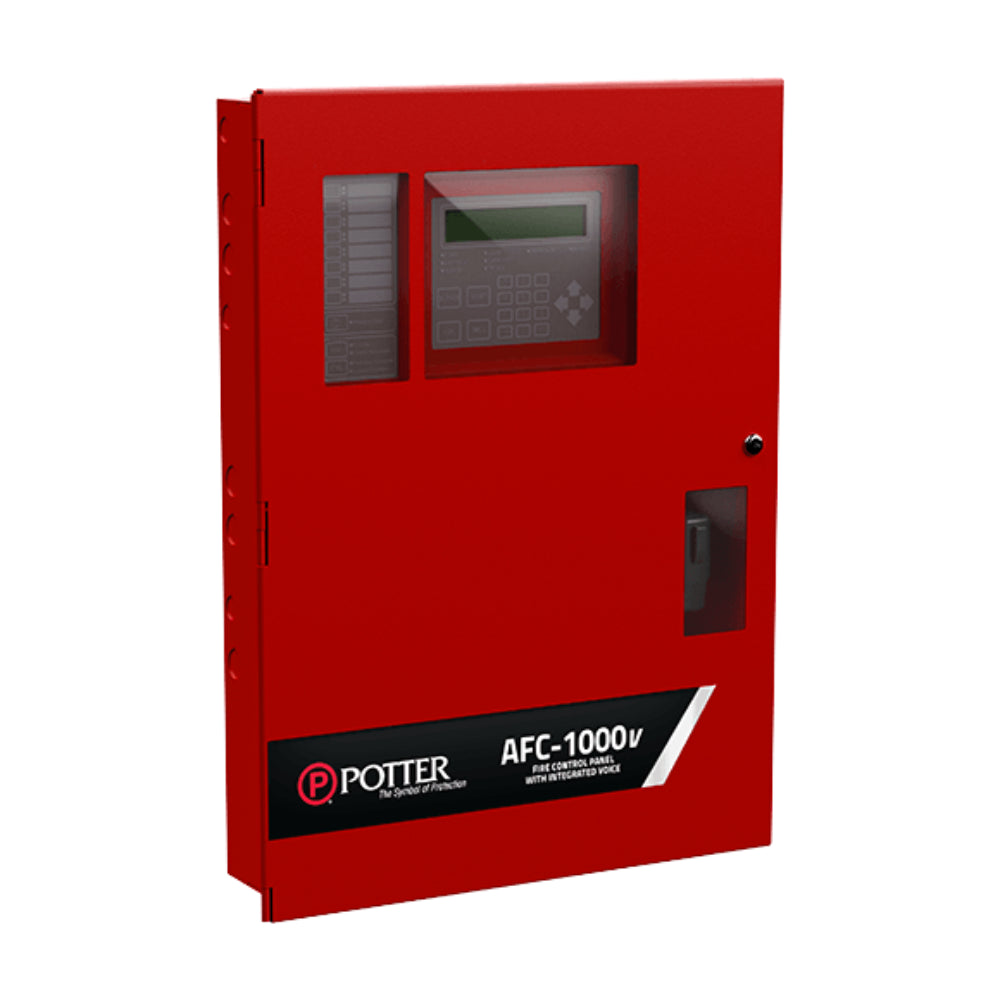

AFC-1000V POTTER

Product Overview The Potter AFC-1000V is an advanced version of the AFC-1000 addressable fire alarm system, now enhanced with integrated voice capabilities. It maintains all existing fire detection functionalities while introducing the VM-1000 voice module and a digital message repeater to transmit audio to remote amplifiers. Designed for reliability and safety, the system is suitable for both single and dual channel applications and supports extensive customization of audio messages and patterns.

Key Features

- Supports single and dual channel configurations
- Flexible programming options
- Up to 2 hours of message storage
- 255 customizable audio patterns
- Internal library of predefined messages and tones
- Record and import messages from a laptop
- Expandable to 104 programmable push buttons for speaker and ECS assignments
- User push buttons for All Call functionality
- AC Mains: 5.0 A @ 120 VAC, 3.0 A @ 240 VAC
- Enclosure: 16-gauge cold rolled steel with removable locked door and Lexan viewing window
- Standby Current: 130 mA; Alarm Current: 220 mA
- NACs, I/O, and P-Link Power: 10 A total, 3 A per NAC, 1 A per I/O, 1 A max for P-Link
- Battery Charger: 27.3 VDC, range 8–55 Ah
- Operating Temperature & Humidity: 32°–120°F (0°–49°C), up to 93% non-condensing
- Category: Fire Alarm Control Panels, Fire Control Panels
