Product Details

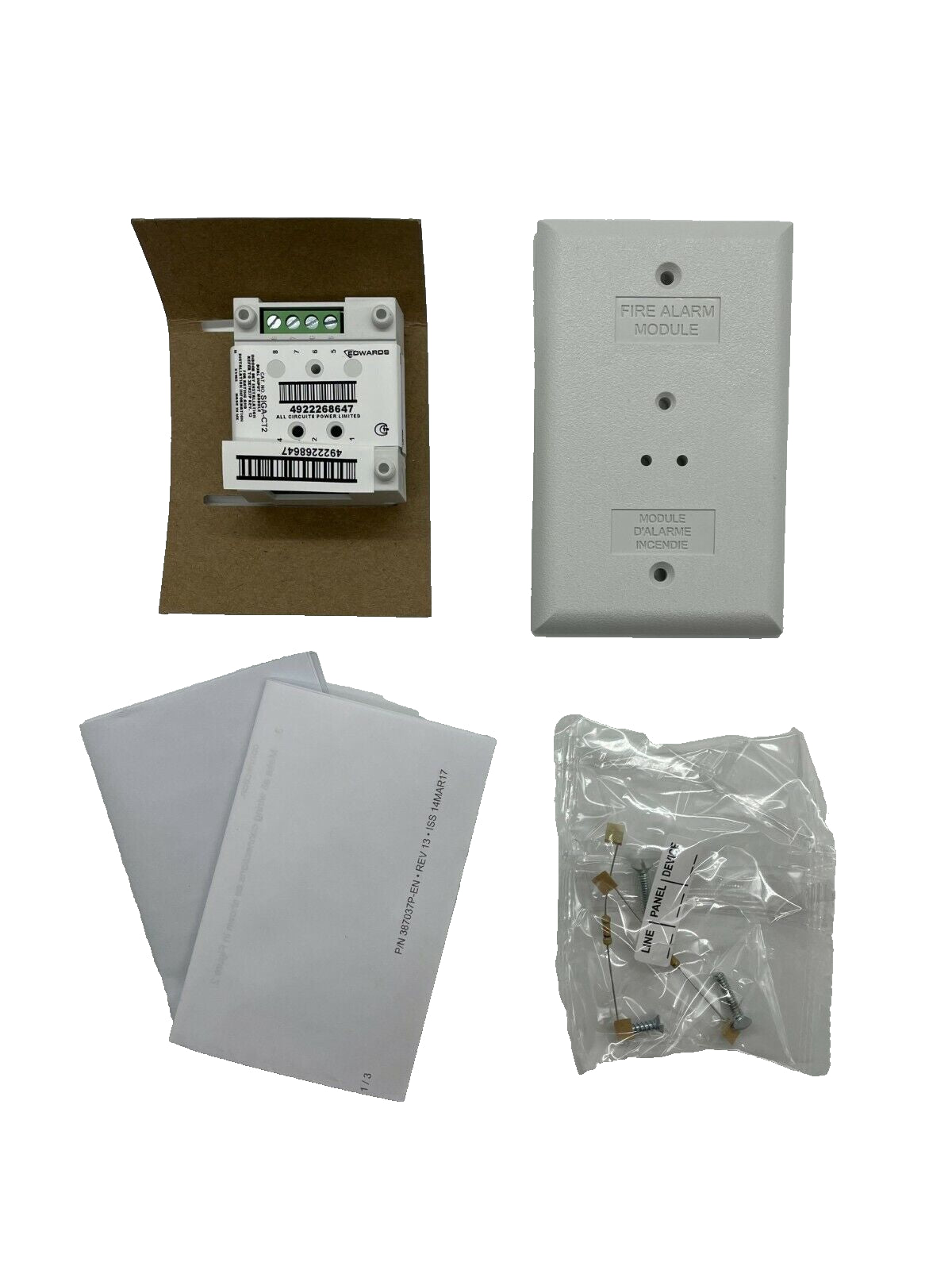

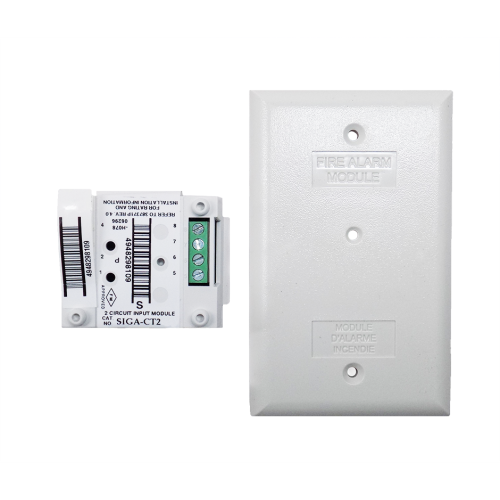

The Edwards EST SIGA-CT2 intelligent addressable dual input module connects up to two Class B normally open dry-contact initiating device circuits to a Signature Series loop, supporting alarm, supervisory, and monitor service through selectable personality codes on each circuit. It uses two module addresses, draws low SLC current, provides green and red LED status at the module, and mounts in standard 1-gang or 4-inch square electrical boxes using Signature mounting plates.
Key Specifications:
Type: Intelligent addressable dual input module
Core Function(s): Monitors up to two Class B normally open dry-contact initiating circuits for alarm, supervisory, or monitor service
Loop/Protocol: Signature SLC
Power: 15.2 to 19.95 VDC from SLC; 396 µA standby, 680 µA active
Indicators/UI: On-board green LED for polling status and red LED for active or alarm
