Product Details
The Silent Knight IDP-PHOTO-IV is an intelligent addressable plug-in photoelectric smoke detector in ivory. It uses rotary decimal addressing for point ID location and an enhanced optical sensing chamber to detect smoke from a wide range of combustion sources. This detector uses FlashScan or CLIP protocol.
Key Specifications:
Type: Intelligent addressable photoelectric smoke detector
Core Function(s): Provides addressable photoelectric smoke detection using an enhanced optical sensing chamber for broad smoke detection.
Loop/Protocol: Silent Knight SLC; FlashScan and CLIP.
Power: 15 to 32 VDC from SLC; 200 μA standby at 24 VDC, 4.5 mA @24 VDC in alarm (LED on)

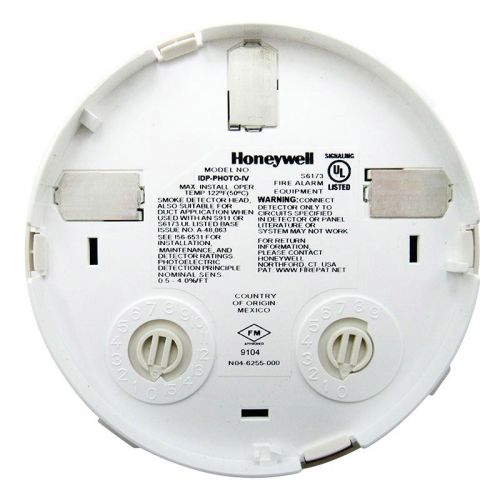

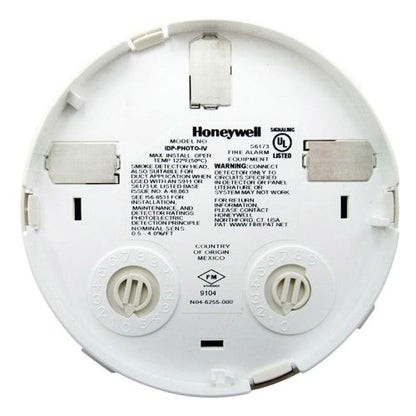

Indicators/UI: LED blinks when polled and latches in alarm; address set by rotary decimal switches; local functional test via external magnet
Compatible Bases & Accessories:
B300-6-IV – Ivory 6-inch standard flanged low profile mounting base
B501-IV – Ivory 4-inch flangeless mounting base
B200S-IV – Ivory intelligent addressable sounder base
B224BI-IV – Ivory isolator detector base
B224RB-IV – Ivory relay detector base
RA100Z – Remote LED annunciator, 3-32 VDC
TR300-IV – Ivory Trim Ring
System Compatibility: Works with Silent Knight fire alarm control panels that support FlashScan and CLIP protocol on the SLC loop.
