Product Details

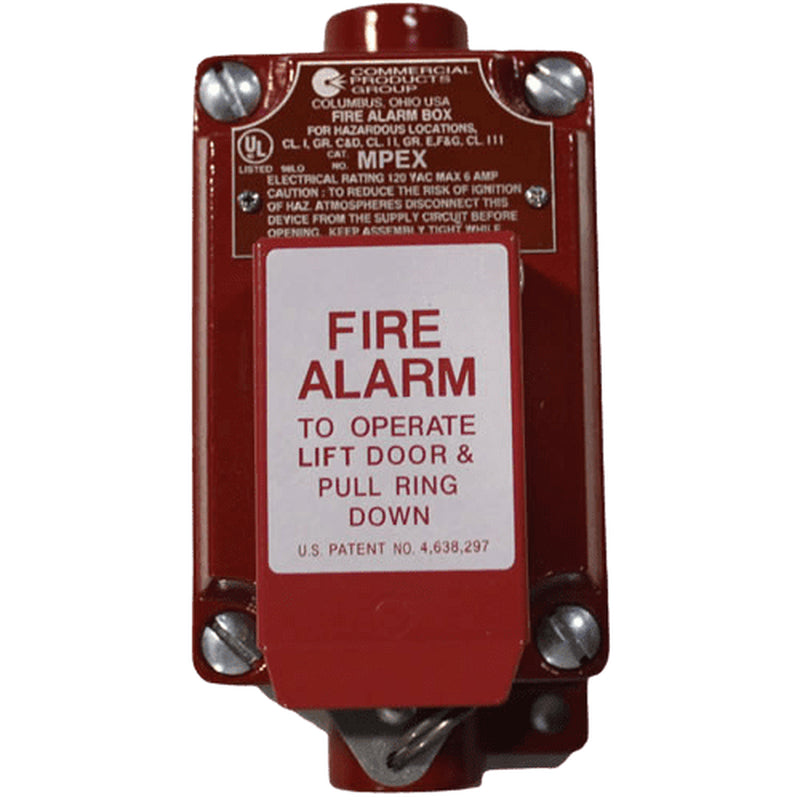

Product Overview The Potter MPEX Explosion Proof Manual Fire Alarm Station is engineered for hazardous environments, including Class I, II, and III areas. The station features a hinged cover with a sliding actuator plate; lifting the cover and pulling down the ring releases a compression spring, activating the internal contact block and triggering the alarm circuit. The enclosure is built from copper-free cast aluminum alloy for durability and safety in extreme conditions.
Key Features
- Explosion-proof design for Class I, II, and III hazardous locations
- Copper-free cast aluminum alloy enclosure
- 120V AC, 60Hz, 6A operation
- Two 3/4" NPT conduit feed-through openings
- Red textured powder epoxy finish for high visibility
- UL Listed for Class I, Division 1, Groups C & D; Class II, Division 1, Groups E, F & G; Class III
- Rated NEMA 7 (Groups C & D) and NEMA 9 (Groups E, F & G)
- Dual action: lift cover and pull down ring to activate
- UL, ULC, and CSFM Listed
Key Features
- Explosion-proof design for Class I, II, and III hazardous locations
- Copper-free cast aluminum alloy enclosure
- 120V AC, 60Hz, 6A operation
- Two 3/4" NPT conduit feed-through openings
- Red textured powder epoxy finish for high visibility
- UL Listed for Class I, Division 1, Groups C & D; Class II, Division 1, Groups E, F & G; Class III
- Rated NEMA 7 (Groups C & D) and NEMA 9 (Groups E, F & G)
- Dual action: lift cover and pull down ring to activate
- UL, ULC, and CSFM Listed
