Product Details

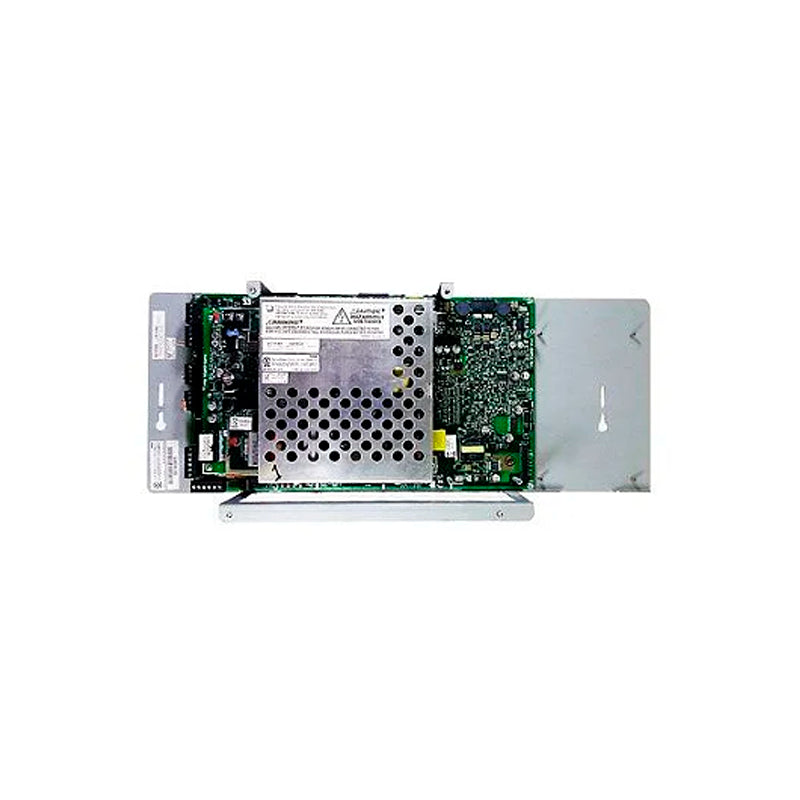

The Notifier CPU2-640 is the Central Processing Unit for the NFS2-640 with integral CPS-24 Power Supply.
— 1 (expandable to 2) Style 4, 6, or 7 Signaling Line Circuits (SLCs)
— capacity: 636 total intelligent devices; 159 detectors/159 modules per SLC
— 4 built in (1.5 amps ea.) Notification Appliance Circuits (NACs)
— Voice Evacuation Available with integrated Digital Voice Command
— Compatible for use with NOTI-FIRE-NET networks
— Comes with integral CPS-24 Power Supply
COMPATIBLE INTELLIGENT DETECTORS:
— FSP-851 Photo Detector
— FSP-851T Photo Detector w/ fixed Thermal element.
— FST-851 Thermal Detector, fixed
— FST-851R Thermal Detector, fixed and rate-of-rise
— FAPT-851 Acclimate Plus Multi-Sensor
— FSC-851 IntelliQuaD Multi-Criteria Detector
— FSA-8000 Intelligent FAAST Detector
— FCO-851 IntelliQuaD Multi-Criteria Detector + CO detector
— FMM-4-20 Gas Detection Module
COMPATIBLE INTELLIGENT BASES:
— B210LP Standard U.S. flanged low-profile mounting base.
— B710LP Standard replacement flanged low-profile mounting base.
— B501 Standard European flangeless mounting base.
— B200S Intelligent, programmable sounder base
— B200SR Intelligent sounder base - Replaces B501BH series bases in retrofit applications.
— B224RB Plug-in System Sensor relay base.
— B224BI Plug-in System Sensor isolator detector base.
NOTE: All base types require an electrical backbox which is at least 1.5" (3.81 cm) deep.
COMPATIBLE ADDRESSABLE DEVICES:
— NBG-12LX Addressable pull station, visible LED
— FMM-1 Monitor Module
— FMM-101 Monitor Module Mini
— FDM-1 Monitor module, dual, two independent Class B circuits
— FZM-1 Monitor module, two-wire smoke detectors
— FCM-1 Control Module
— FRM-1 Relay Module
— XP5-M Transponder, monitor, five addressable Class B circuits
— XP5-C Transponder, control/relay, five addressable Class B circuits
— ISO-X Isolator Module
