Product Details

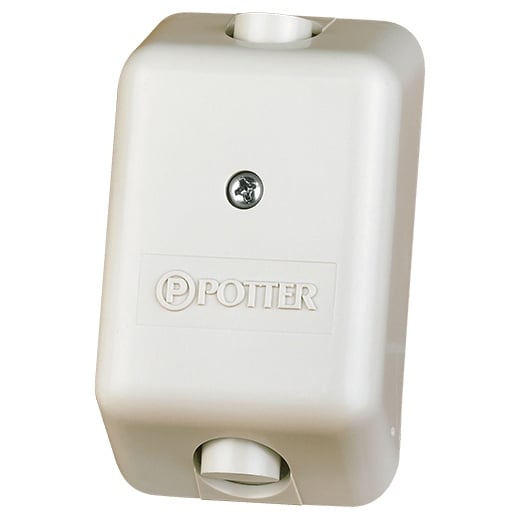

Product Overview The Potter HUB-T Dual Button Hold-Up Switch is a UL and CUL Listed device designed for security applications. It provides two sets of momentary or latching DPDT contacts for actuating surveillance cameras or other security devices, in addition to the hold-up signal. The contacts can operate independently or be wired in series for extra protection against false alarms.
Key Features
- UL and CUL Listed
- Dual momentary or latching DPDT contacts
- Compact dimensions: 2 1/16" W x 3 7/16" L x 1 1/4" H
- Switch rating: 3 Amps at 28V DC/AC, 0.05 Amp at 125V DC resistive
- Temperature range: 32°F to 140°F (85% maximum humidity)
- ABS plastic enclosure
- Indoor use only; not suitable for coolers, freezers, or outdoor environments
Key Features
- UL and CUL Listed
- Dual momentary or latching DPDT contacts
- Compact dimensions: 2 1/16" W x 3 7/16" L x 1 1/4" H
- Switch rating: 3 Amps at 28V DC/AC, 0.05 Amp at 125V DC resistive
- Temperature range: 32°F to 140°F (85% maximum humidity)
- ABS plastic enclosure
- Indoor use only; not suitable for coolers, freezers, or outdoor environments
