Product Details

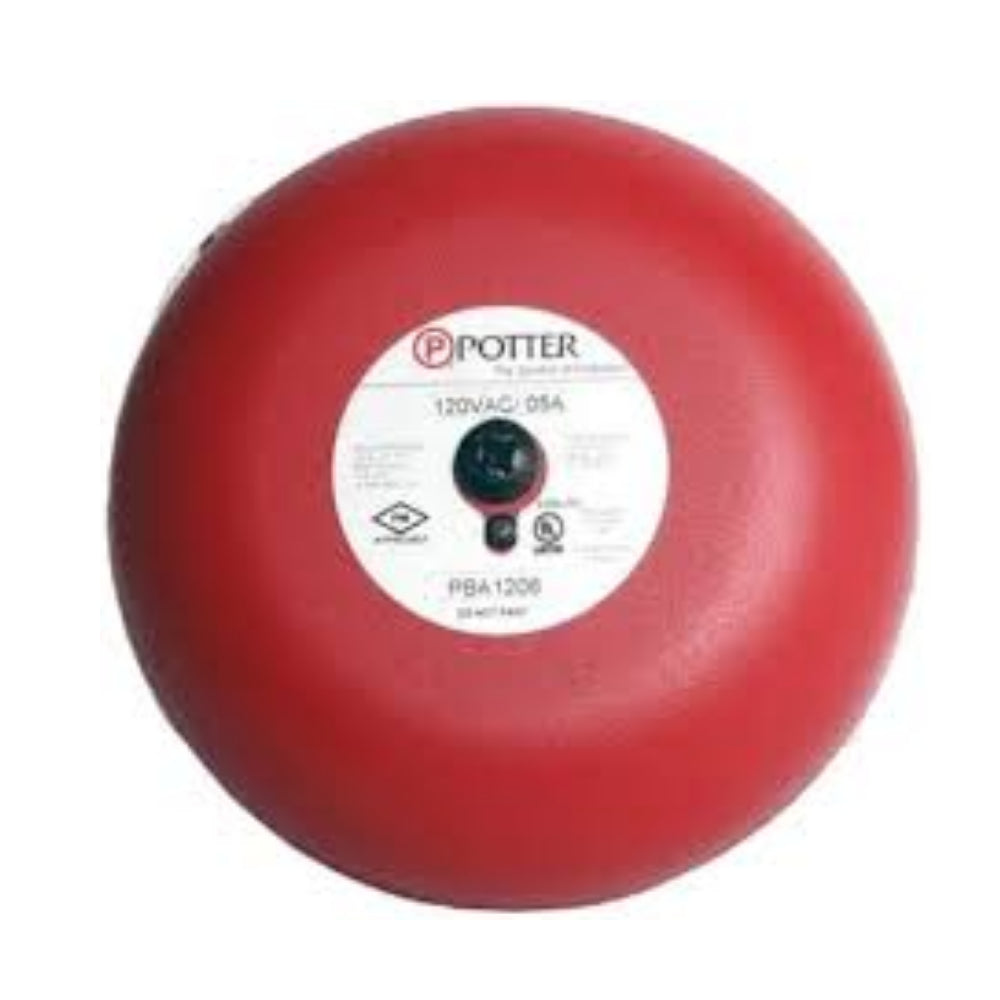

Product OverviewThe PBA-1206 Vibrating Bell is a compact and efficient signaling device designed for fire alarm, burglar alarm, and general notification applications. Operating on 120VAC, it delivers strong audible output with low power consumption, making it suitable for a wide range of standard indoor installations. The unit mounts easily to a 4" (101 mm) square electrical box and is approved for both indoor and outdoor environments. UL, ULC, and FM approvals ensure dependable performance in critical safety systems.
Key Features- Model Number: PBA-1206
- Item Number: 1806120
- Bell Size: 6 inches
- Voltage: 120VAC
- Max Current: 0.05A
- Sound Output at 10 ft: Typical 92 dB, Minimum 83 dB
- Vibrating-bell design optimized for fire, burglar, and general signaling
- Low current draw with high sound pressure levels
- Compatible with standard 4" square electrical boxes
- Approvals: UL, ULC, FM
- Available in 6" (150 mm), 8" (200 mm), and 10" (250 mm) models
- Applications: Fire alarm, general signaling, burglar alarm
- Environmental Rating: Indoor or outdoor, -40°F to 150°F (-40°C to 66°C)
- Wiring: Four 18 AWG stranded leads
- Finish: Durable red powder-coated surface
