Product Details

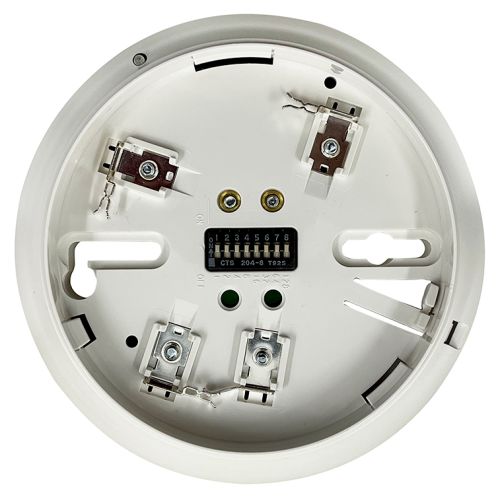

The Simplex 4098-9792 is an addressable Standard Sensor Base, compatible with a variety of TrueAlarm Detector Heads.
This product is for use with Simplex Intelligent Control Panels (4010, 4020, 4100, 4100+, 4100U, 4100ES, 4008, and 2120) using IDNET and MAPNET II Communications.
COMPATIBLE OPTIONAL ACCESSORIES:
— 2098-9737 Remote or local mount supervised relay: DPDT contacts for resistive/suppressed loads, power limited rating of 3 A @ 28 VDC; non-power limited rating of 3 A @ 120 VAC (requires external 24 VDC coil power)
— 4098-9860 Remote or local mount supervised relay: SPDT dry contacts, power limited rating of 2 A @ 30 VDC, resistive; non-power limited rating of 0.5 A @ 125 VAC, resistive
— 4098-9822 LED Annunciation Relay
— 4098-9832 Adapter plate: Required for surface or semi-flush mounting to 4” square electrical box and for surface mounting to 4” octagonal box; Can be used for cosmetic retrofitting to existing 6-3/8” diameter base product
— 2098-9808 Remote red LED Alarm Indicator: Mounts on single gang box.
FOR USE WITH SIMPLEX TRUEALARM SENSOR HEADS:
— 4098-9714 Photoelectric Smoke
— 4098-9717 Ionization Smoke
— 4098-9733 Heat
— 4098-9754 Multi-Sensor
