Product Details

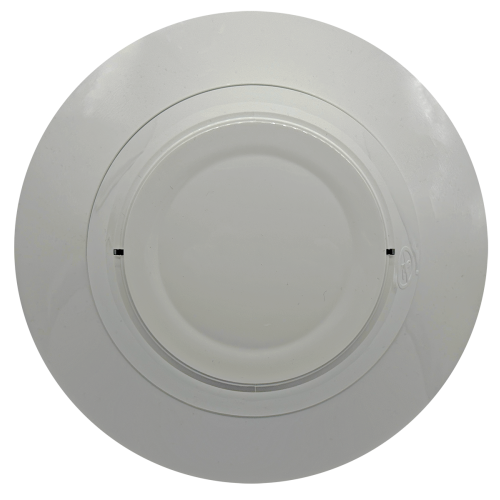

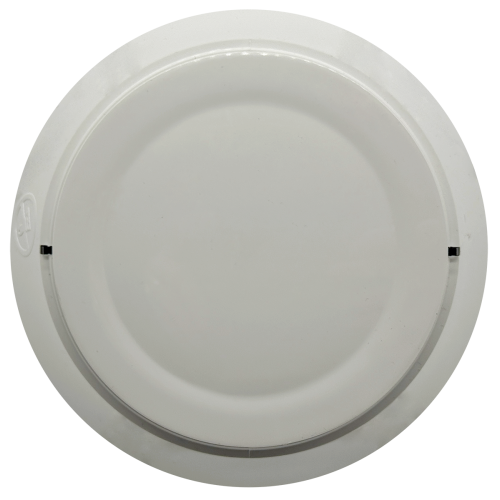

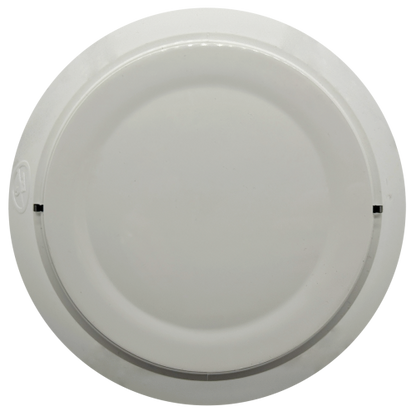

The System Sensor SS-PHOTO is an intelligent addressable plug-in photoelectric smoke detector with rotary decimal addressing and a re-designed optical sensing chamber engineered to detect smoke from a wide range of combustion sources. It supports SK, LiteSpeed, or SS Protocol systems (panel dependent), and includes the B300-6 detector base. Dual LEDs provide 360° visibility for status and alarm indication.
Key Specifications:
Type: Intelligent addressable photoelectric smoke detector
Core Function(s): Addressable photoelectric smoke detection using a re-designed optical sensing chamber
Loop/Protocol: System Sensor SLC; SK, LiteSpeed, or SS Protocol (panel dependent)
Power: 15 to 32 VDC peak from SLC; 200 μA @ 24 VDC (green LED blink on communication); 4.5 mA max @ 24 VDC (amber LED solid on); 2 mA max alarm @ 24 VDC (red LED solid on)

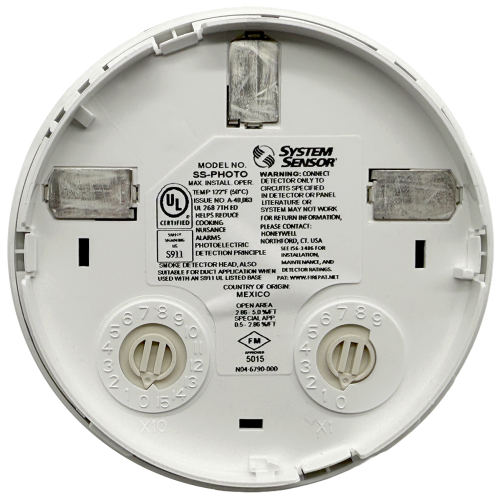

Indicators/UI: Rotary decimal address switches; dual LEDs for 360° visibility (green blink on communication, red solid in alarm)
Operating Range: 32°F to 122°F (0°C to 50°C)
Humidity Range: 10% to 93% RH, non-condensing
Compatible Bases & Accessories:

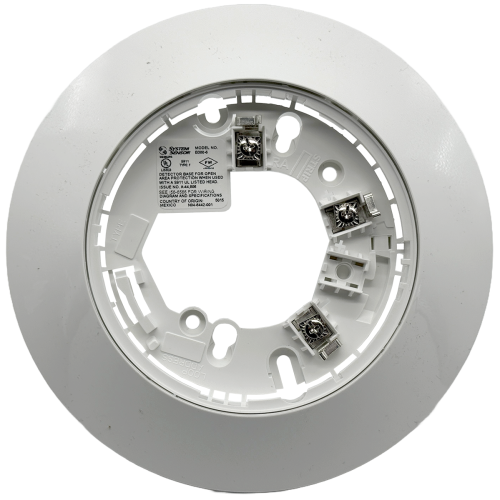

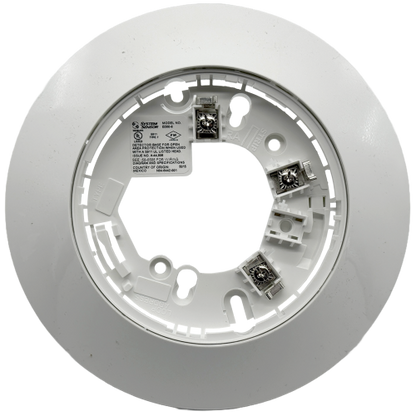

B300-6 – White, 6” base, standard flanged low-profile mounting base
B501-WH – White, 4” standard European flangeless mounting base.
B200S-WH – White, intelligent programmable sounder base
B224BI-WH – White, isolator detector base
B224RB-WH – White, relay detector base
RA100Z – Remote LED annunciator, 3–32 VDC (for use with B501 and B300-6)
TR300 – Trim ring
System Compatibility: Works with addressable fire alarm control panels that support SK, LiteSpeed, or SS Protocol on the SLC loop (panel dependent).
