Product Details

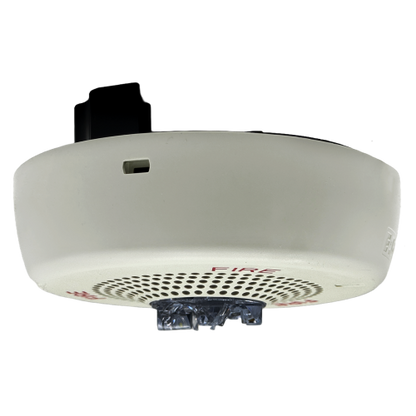

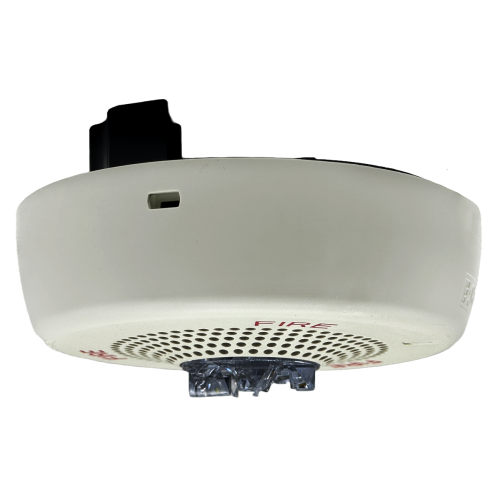

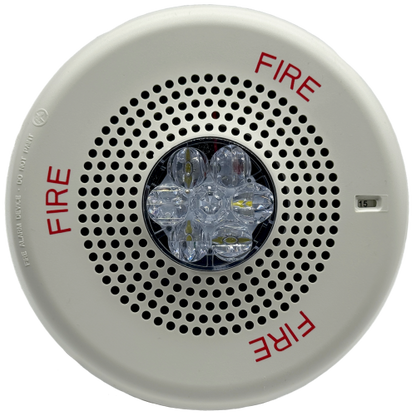

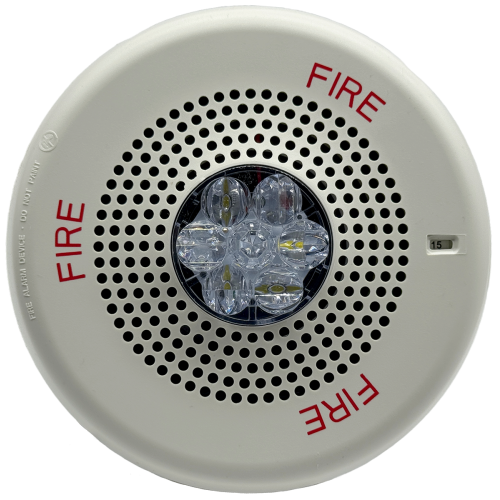

The Wheelock ELCHSWC is an Eluxa ceiling chime strobe for indoor notification, combining an 890 Hz chime with an LED multi-candela strobe on 24 VDC or 24 VFWR circuits. It supports field-selectable 1 Hz, 2 Hz, Coded, and Temporal 3 (T3) modes, plus adjustable volume. The strobe provides six field-selectable ceiling settings from 15 to 177 cd, and the device supports 2-wire or 4-wire operation for chime and strobe control.
Key Specifications:
Type: Indoor ceiling chime strobe
Core Function(s): 890 Hz chime with selectable 1 Hz 2 Hz Coded or T3 modes plus LED strobe visual signaling
Loop/Protocol: Conventional NAC wiring 2-wire or 4-wire operation with Wheelock sync protocol support

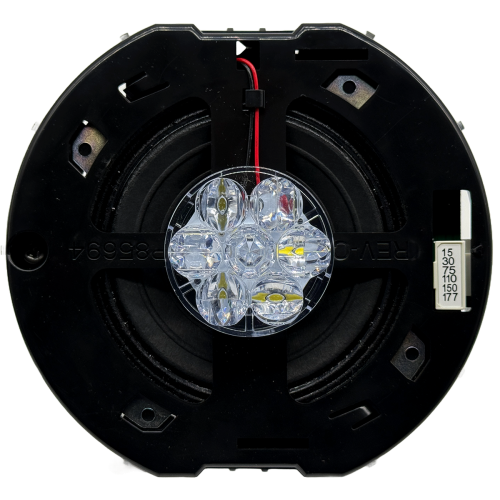

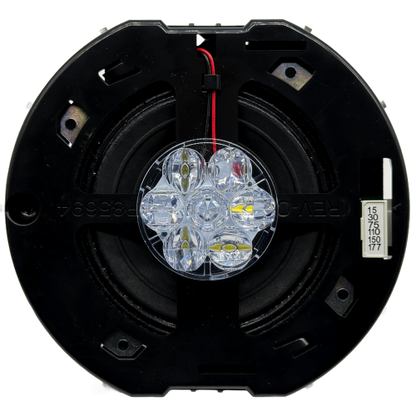

Power: 24 VDC or 24 VFWR 16.0 to 33.0 V operating range; ceiling candela settings 15 30 75 110 150 177 cd

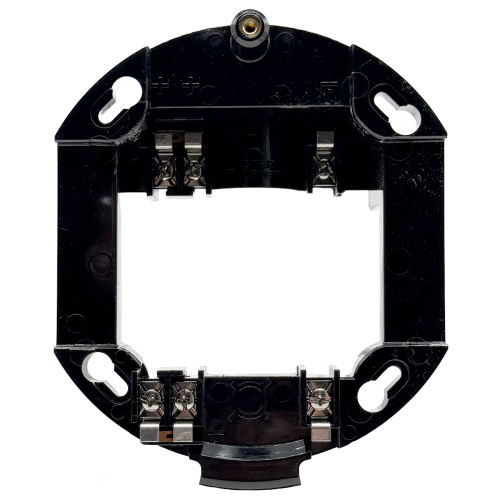

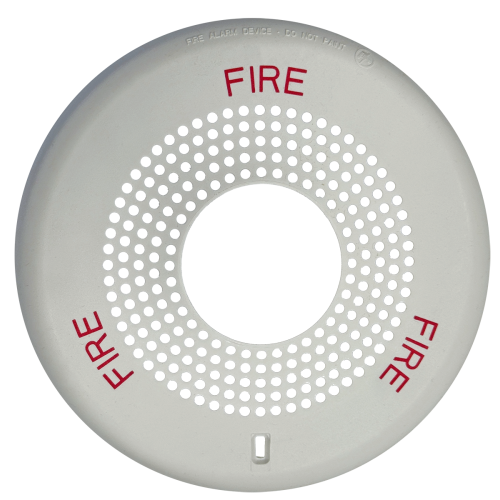

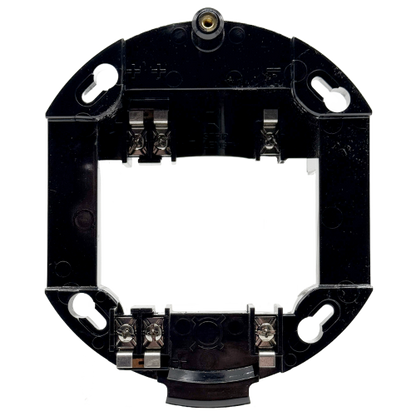

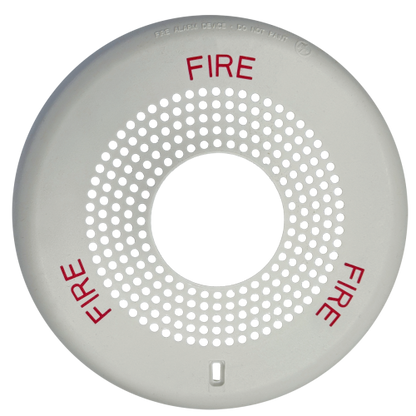

Indicators/UI: Adjustable volume built in level adjustment snap on grille cover mounting plate with capture hinge IN OUT screw terminals for 12 to 18 AWG
Compatible Backboxes & Accessories:
LSPKBB-CW – Ceiling backbox for Eluxa ceiling chime strobe models
DSM – Sync module for strobe synchronization
System Compatibility: Compatible with FACPs and accessories determined compatible with Wheelock RSS strobe based products and Exceder LED3 strobe based products when synchronization is provided by compatible Wheelock sync equipment.
