Product Details

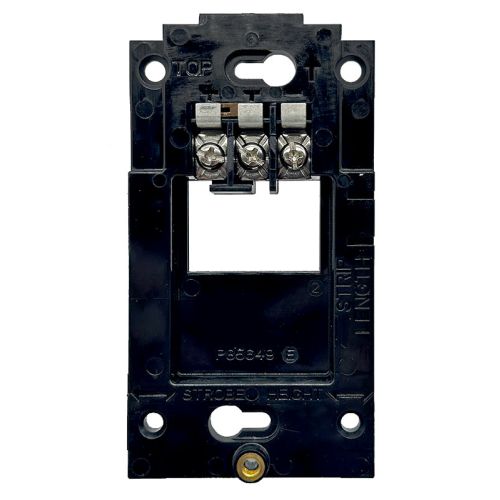

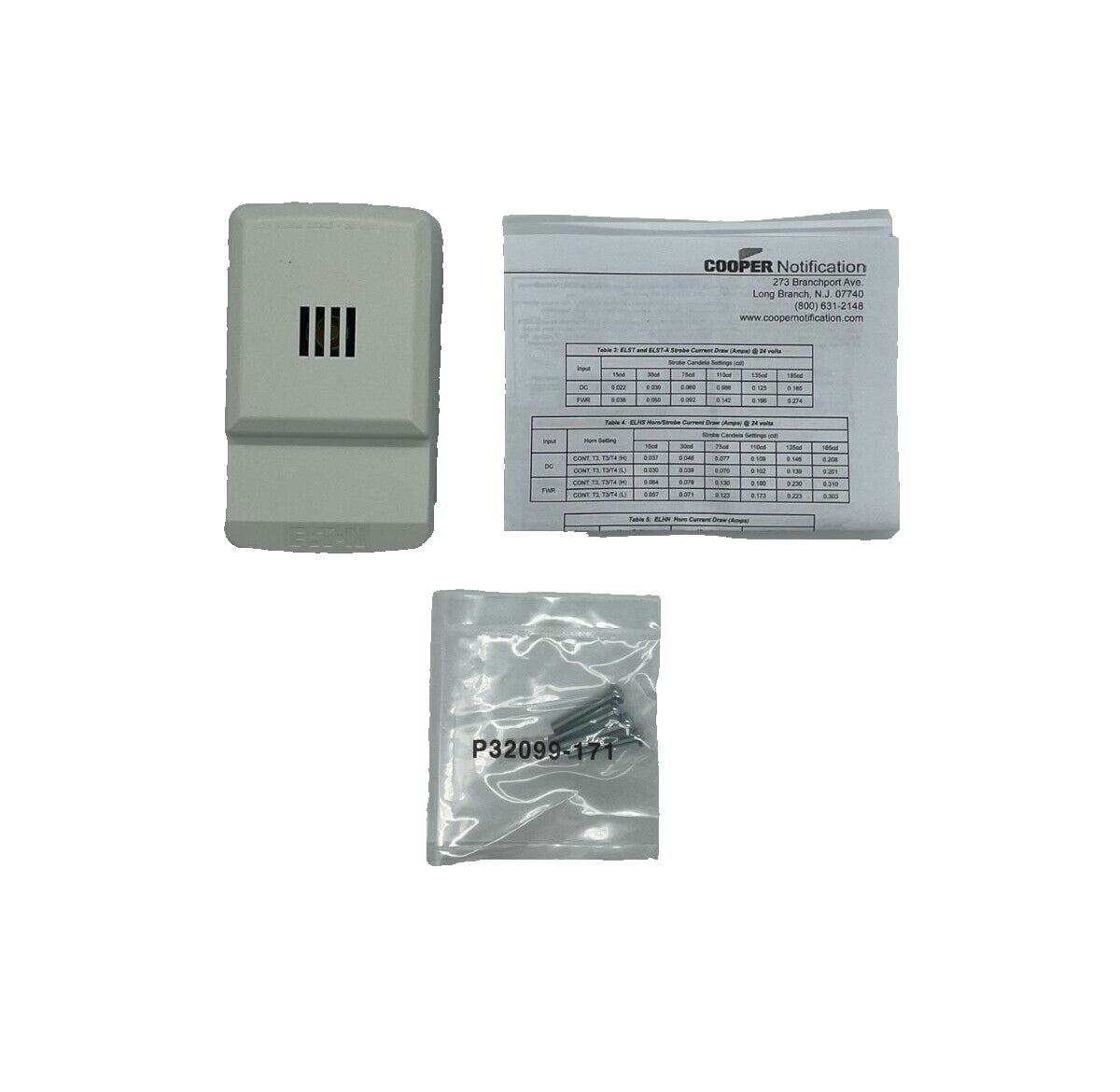

The Wheelock ELHNW is an Eluxa electronic horn for indoor wall notification, providing audible signaling on 12 or 24 VDC/VFWR notification appliance circuits. It offers three field selectable horn patterns with high or low dBA output and ships with a hinged mounting plate for pre wire, pre test, and single screw final installation.
Key Specifications:
Type: Eluxa electronic horn, wall mount, white housing with no lettering
Core Function(s): Audible notification with three horn patterns (Continuous, Temporal 3, and T3/T4) and selectable high or low dBA output
Loop/Protocol: Conventional 12 or 24 VDC/VFWR notification appliance circuits
Power: Regulated 12 VDC range 8.0 to 17.5 V and 24 VDC range 16.0 to 33.0 V with low current draw

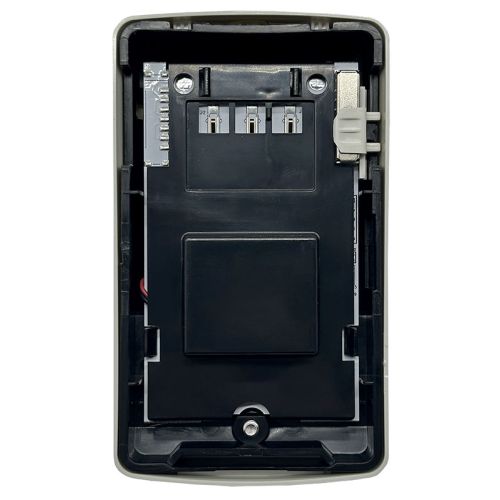

Indicators/UI: Finger slide switches for horn pattern and volume, no visible mounting screws
Environmental: Indoor use, operating range 32 °F to 122 °F (0 °C to 50 °C), wall mounting plate included
Compatible Backboxes & Accessories:
ELSBB-W – White LED wall backbox for Eluxa horns, horn strobes, and strobes
ESB-KIT-W – White trim plate kit for wall installations
System Compatibility: Compatible with fire alarm control panels and accessories approved for Wheelock Eluxa, Exceder LED3, and RSS notification appliances using standard Wheelock synchronization where required.
