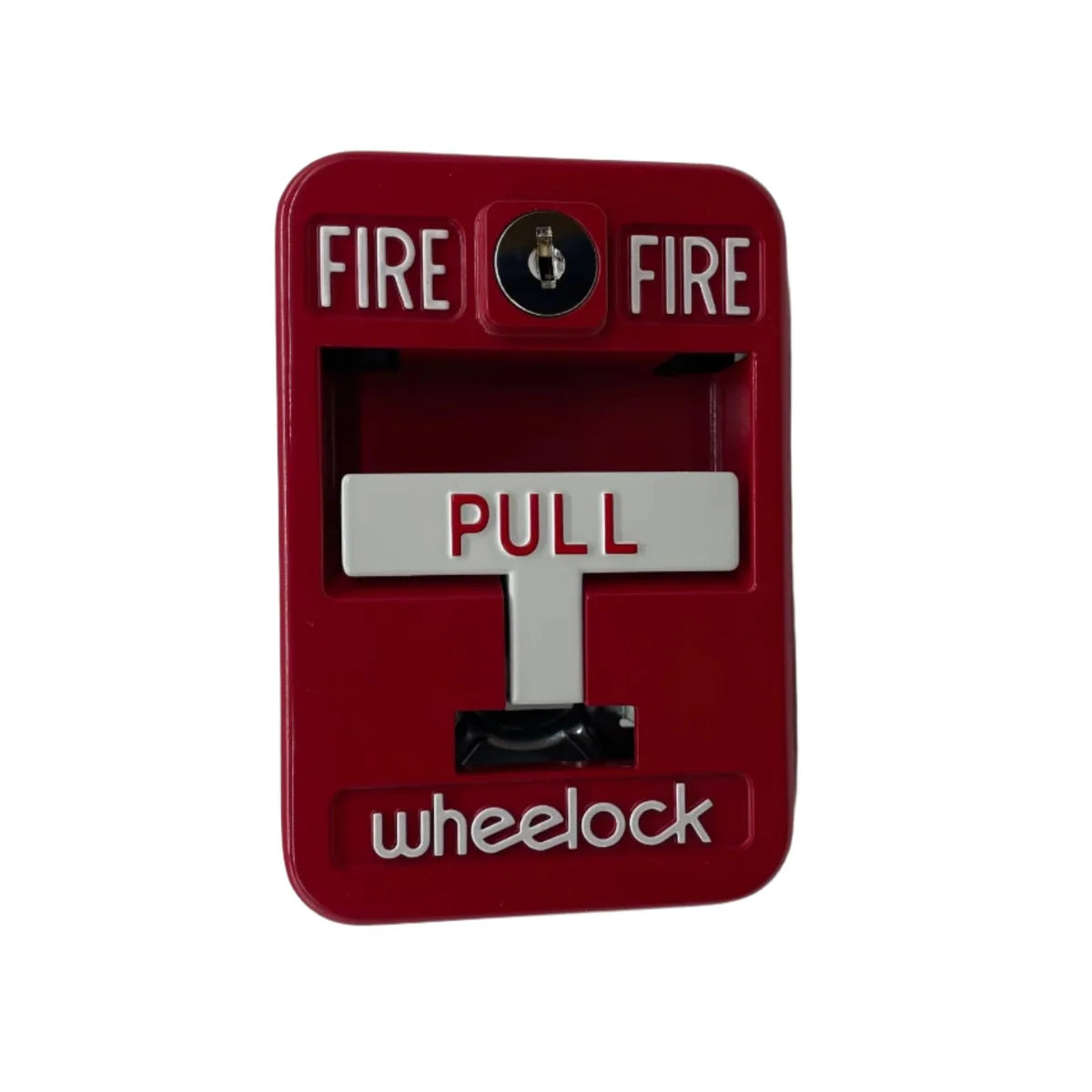

WHEELOCK MPS-100

Product Overview The Wheelock Series MPS non-coded Manual Pull Stations are built with durable die-cast metal for long-lasting performance. They can be mounted on a single-gang backbox and are available in single or dual action designs for indoor or outdoor use. The pull stations feature SPST contacts with a terminal strip, with normally open contacts rated at 30 VDC @ 1 A and 120 VAC @ 1 A. Gold-plated contacts resist corrosion. The single-action explosion-proof model, Series MPS-400X, is UL Listed and Factory Mutual approved for hazardous environments, including Class I, II, and III areas, and is also marine rated. Weatherproof versions are NEMA-3R listed when mounted with the MPS-WP back box.

Key Features

- ADA compliant design
- Weatherproof model suitable for outdoor installation
- Gold-plated terminal connections for corrosion resistance
- Available in single or dual action
- UL and Factory Mutual approved for hazardous locations
- NEMA-3R listed when used with weatherproof back box
