WHEELOCK PS-8-EXP-LP

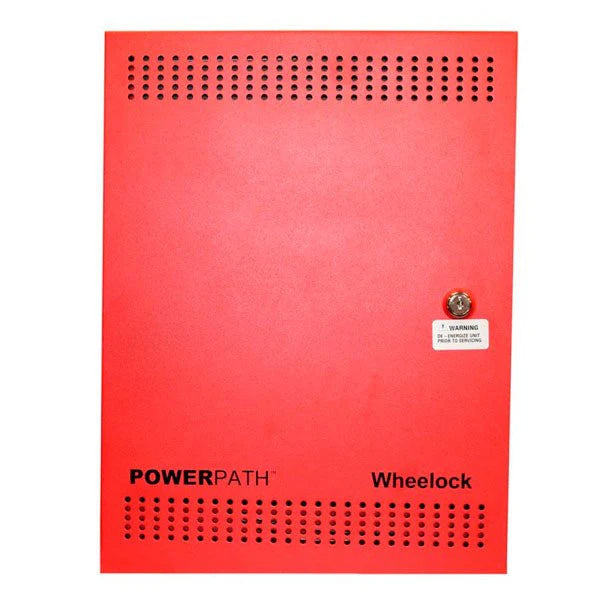

Product Overview The Wheelock POWERPATH Power Supply (PS-8-LP) is a supervised remote power supply and battery charger housed in a low-profile cabinet. It is designed to provide supervision and additional power capacity for fire alarm Notification Appliance Circuits (NACs). The PS-8-LP is fully filtered and regulated, delivering 8 amps of power across four outputs.

This unit supports 2 Class B or 2 Class A inputs, input-to-output follow mode, and audible silence capability. Additional features include DIP-switch programming, an LED latching option, two relays for AC failure and common trouble, and a programmable AC loss relay delay. The PS-8-LP also supports POWERPATH-to-POWERPATH panel synchronization and provides a 2.5-amp auxiliary power output with reset capability.

Key Features

- Low-profile design
- Approvals include UL 864 and UL 1481
- Compliant with NFPA 73
- 8 amps of regulated, filtered power across 4 outputs
- Supports 2 Class B or 2 Class A inputs
- Audible silence and input-to-output follow mode
- Includes AC fail and common trouble relays
- Programmable AC loss relay delay
- 2.5A auxiliary power output with reset capability
- Supports panel-to-panel synchronization
